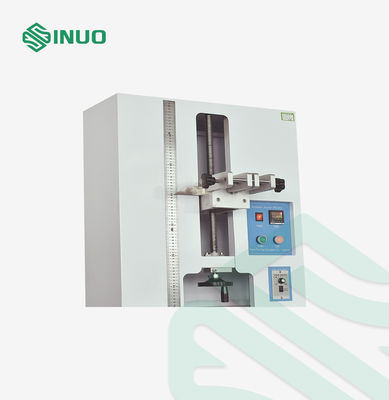

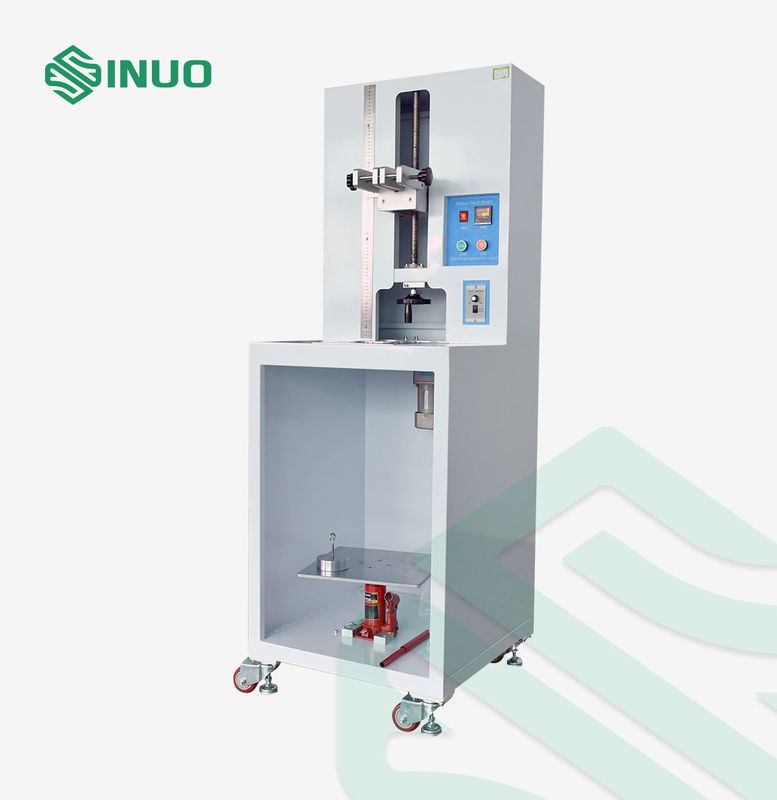

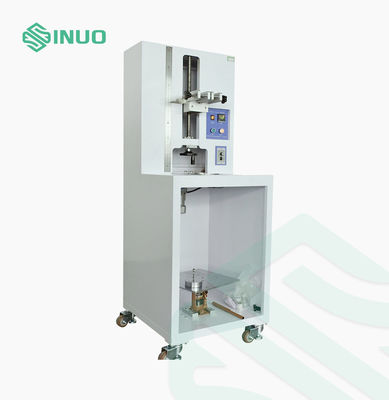

IEC 62196 Terminal Mechanical Test Equipment Clamping Screw Terminal Tester

IEC 62196 Terminal Mechanical Test Equipment Clamping Screw Terminal Tester

ব্র্যান্ড নাম: Sinuo
মডেল নম্বর: SNQC1012
MOQ: 1
দাম: Customized
অর্থ প্রদানের শর্তাবলী: টি/টি
সরবরাহের ক্ষমতা: প্রতি মাসে 10 সেট
বিস্তারিত তথ্য
উৎপত্তি স্থল:
চীন
সাক্ষ্যদান:
Calibration Certificate (Cost Additional)
সামঞ্জস্যযোগ্য উচ্চতা:
260-660 মিমি
পরীক্ষার গতি:
10 ± 2 r/মিনিট
ঘোরানো ব্যাস:
75 মিমি
ঘোরানো ওজন:
0.4-70.3 কেজি
বুশিং হোল ব্যাস:
6.5, 9.5, 13, 14.5, 15.9, 19.1, 22.2, 25.4, 28.6, 31.8, 38.1, 44.5 মিমি
পরীক্ষা চক্র:
0-9999 সামঞ্জস্যযোগ্য
প্যাকেজিং বিবরণ:
পাতলা পাতলা কাঠের কেস
যোগানের ক্ষমতা:
প্রতি মাসে 10 সেট
বিশেষভাবে তুলে ধরা:

IEC 62196 terminal tester

,

EV charging terminal test equipment

,

clamping screw terminal mechanical tester

পণ্যের বর্ণনা
IEC 62196 Terminal Mechanical Test Equipment Clamping Screw Terminal Tester Product information This testing machine conforms to IEC 62196-3:2026 clause 13, IEC 62196-1:2022 clause 13.3.1 figure 12, table 5. This compliance is used for judging whether the design and the structure of the clamping screw terminal is correspondent with the requirement of non over-damage to the wire. Besides, it is also used to check whether the clamping screw terminal can bear the stress during
