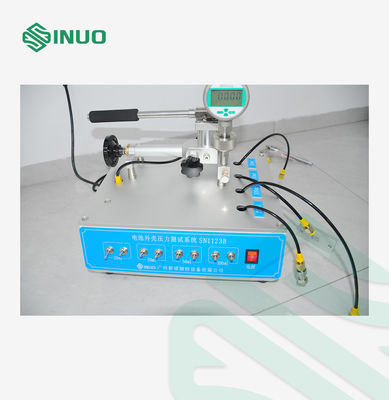

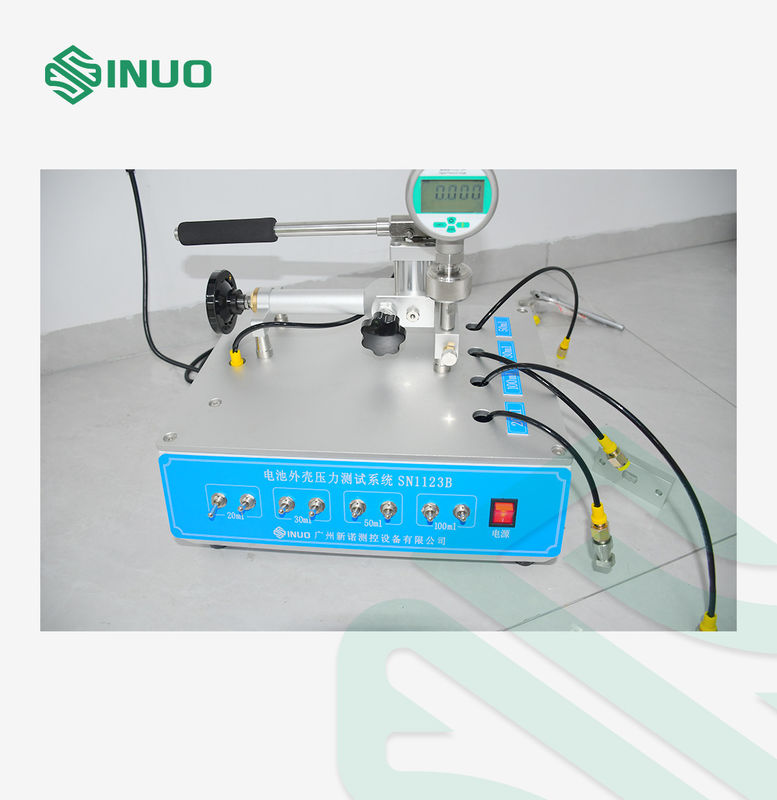

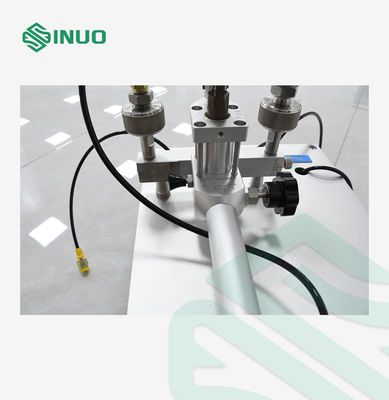

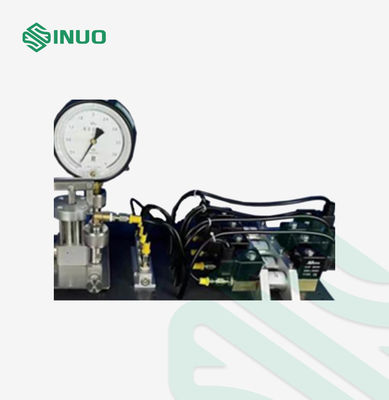

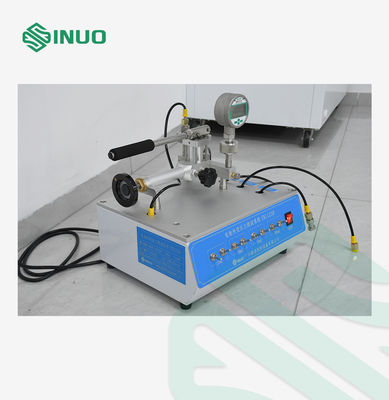

IEC 60335-1: 2020 – Appendix BB-20.1 Battery Case Pressure Testing System

IEC 60335-1: 2020 – Appendix BB-20.1 Battery Case Pressure Testing System

ব্র্যান্ড নাম: Sinuo
মডেল নম্বর: SN1123B
MOQ: 1
মূল্য: Customized
অর্থ প্রদানের শর্তাবলী: টি/টি
সরবরাহের ক্ষমতা: প্রতি মাসে 30 সেট
বিস্তারিত তথ্য
উৎপত্তি স্থল:
চীন
সাক্ষ্যদান:
Calibration Certificate (Cost Additional)
পরীক্ষার চাপ:
0.01-2.5 MPa; প্রেসার গেজে প্রদর্শিত হয়
পরীক্ষা প্রক্রিয়া:
ম্যানুয়াল লোডিং এবং অপারেশন
সিলিং সংযোগকারী:
1 সেট; ওরিফিস ব্যাস: Φ2.85 ±0.05 মিমি
বাতাসের পরিমাণ:
20 / 30 / 50 / 100 মিলি
অপারেটিং তাপমাত্রা:
5-40° সে
অপারেটিং আর্দ্রতা:
20-80% RH
প্যাকেজিং বিবরণ:
পাতলা পাতলা কাঠের কেস
যোগানের ক্ষমতা:
প্রতি মাসে 30 সেট
বিশেষভাবে তুলে ধরা:

IEC 60335-1 battery case pressure tester

,

EV battery testing equipment with warranty

,

Battery pressure testing system 2020 standard

পণ্যের বর্ণনা
IEC 60335-1: 2020 – Appendix BB-20.1 Battery Case Pressure Testing System Product Details The Battery Case Pressure Testing System is designed for evaluating the mechanical strength and pressure resistance of battery enclosures used in battery-powered appliances with metal-ion chemistry batteries. According to IEC 60335-1:2020 Appendix BB-20.1, this equipment simulates abnormal battery venting conditions by applying controlled internal pressure to verify whether the battery
