IEC 62196-1 Compliant Vertical & Pendulum Dual-Mode Steel Ball Impact Tester

IEC 62196-1 Compliant Vertical & Pendulum Dual-Mode Steel Ball Impact Tester

ব্র্যান্ড নাম: Sinuo
মডেল নম্বর: SN2202
MOQ: 1
মূল্য: Customized
অর্থ প্রদানের শর্তাবলী: টি/টি
সরবরাহের ক্ষমতা: প্রতি মাসে 10 সেট
বিস্তারিত তথ্য
উৎপত্তি স্থল:
চীন
সাক্ষ্যদান:
Calibration Certificate (Cost Additional)
ড্রপ হাইট:
সামঞ্জস্যযোগ্য পরিসীমা: 0.4 মি ~ 1.5 মি
প্রভাব মোড:
উল্লম্ব ড্রপ প্রভাব এবং পেন্ডুলাম প্রভাব
ইস্পাত বল:
Φ50.8 মিমি, ভর 535 গ্রাম
উত্তোলন মোড:
বৈদ্যুতিন ড্রাইভ
ক্ল্যাম্পিং পদ্ধতি:
ইলেক্ট্রোম্যাগনেটিক শোষণ এবং মুক্তি নিয়ন্ত্রণ
অপারেটিং তাপমাত্রা:
0 ~ 40 ℃ ℃
প্যাকেজিং বিবরণ:
পাতলা পাতলা কাঠ
যোগানের ক্ষমতা:
প্রতি মাসে 10 সেট
পণ্যের বর্ণনা
IEC 62196-1 Compliant Vertical & Pendulum Dual-Mode Steel Ball Impact Tester

Product Information

This steel ball impact tester is used to test the anti-drop impact performance of EV accessories. It features two switchable test modes: vertical free drop impact and horizontal pendulum impact on test samples. Equipped with electric lifting and electromagnetic clamping structure, it supports adjustable drop height from 0.4m to 1.5m to generate various impact energy as required.

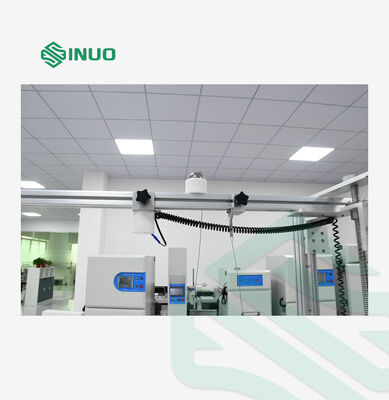

IEC 62196-1 Compliant Vertical & Pendulum Dual-Mode Steel Ball Impact Tester 0
Compliant Standard

• IEC62196‑1:2025 Clause 26.2

• IEC60950‑1:2005 Clause4.2.5

• IEC60598‑1:2014 Clause4.13.4a

• IEC60065:2005 Clause12.1.3 & Figure8

Technical Parameters
Test Purpose Conduct drop impact resistance test on equipment enclosures
Test Principle Free vertical drop or free pendulum impact on test samples
Equipment Structure & Features Supports two test modes: vertical drop impact and horizontal pendulum impact
Operating Environment

Power Supply: AC220V±10%, 50/60Hz;

Operating Temp: 0~40℃;

Humidity: 30%~90%

Impact Steel Ball Steel ball: Φ50.8 mm, mass 535 g
Impact Mode Vertical drop impact and pendulum impact, switchable.
Drop Height Adjustable range: 0.4 m ~ 1.5 m
Impact Energy

Formula: E=mgH, supports impact energy values (J) listed below and custom requirements.

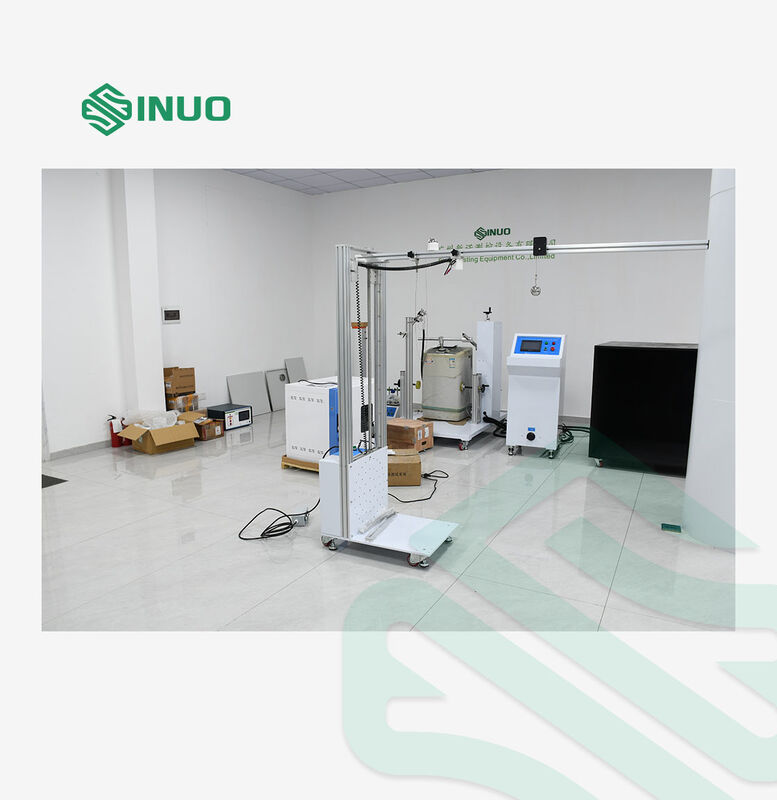

IEC 62196-1 Compliant Vertical & Pendulum Dual-Mode Steel Ball Impact Tester 1

Lifting Mode

Electric drive

Clamping Method

Electromagnetic adsorption & release control

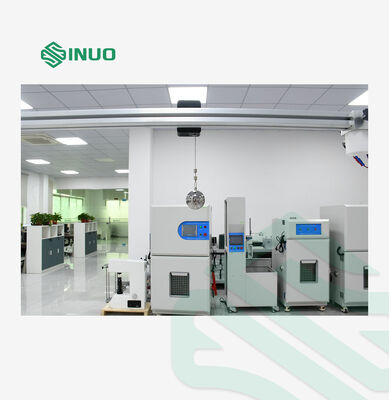

IEC 62196-1 Compliant Vertical & Pendulum Dual-Mode Steel Ball Impact Tester 2
